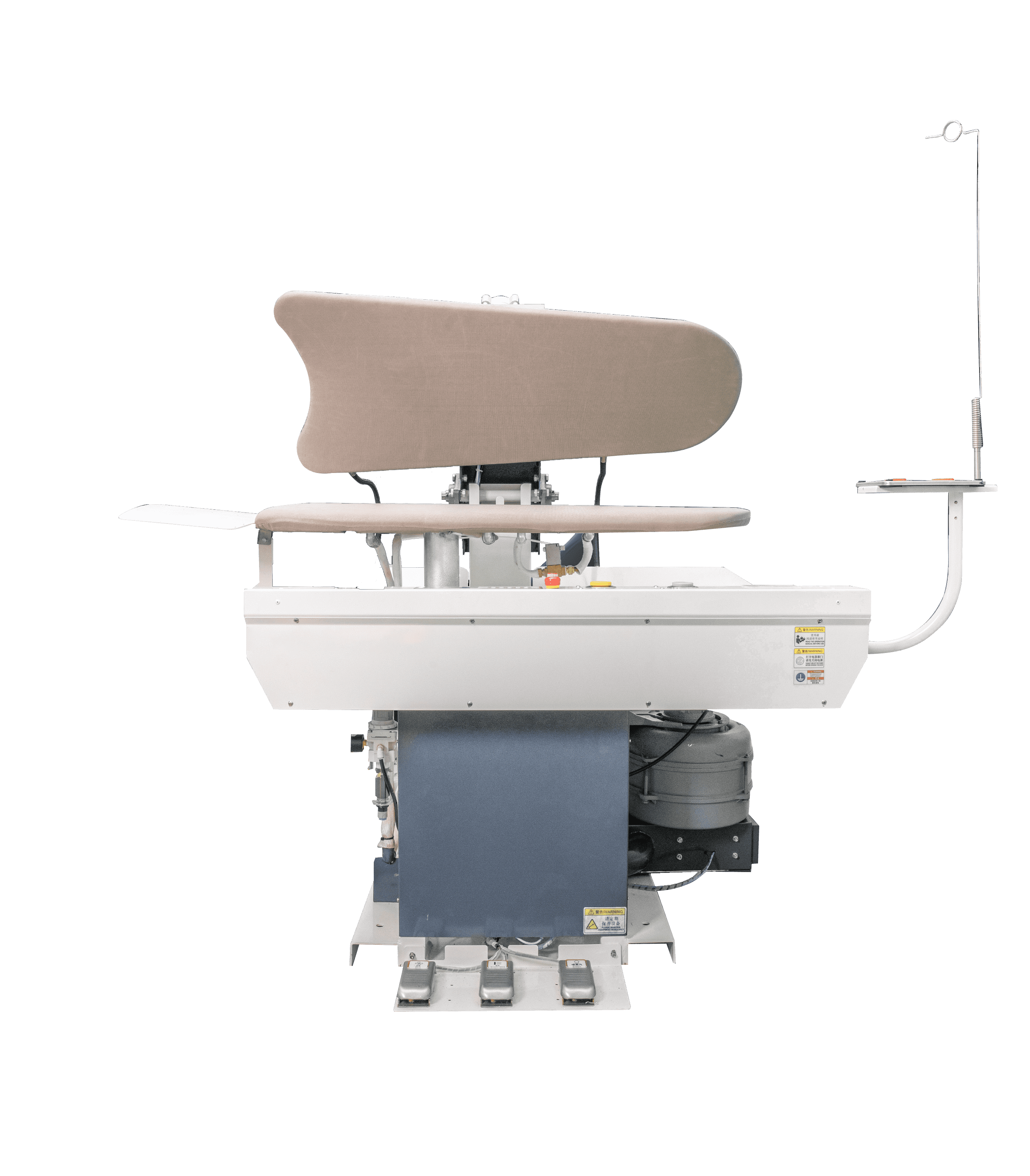

Ironing machine for tops and trousers

Ironing machine for tops and trousers

Ironing machine for tops and trousers

Product Overview

The suction air switches freely, the motor is automatically stopped (after 10 seconds of no operation), and the Danfoss AC drive smoothly adjusts the air volume

Application Industry

Laundry factory

Technical features

Blowing and suction air can be switched freely
Automatic motor stop (after 10 seconds without operation)
Danfoss AC drives allow for smooth adjustment of air volume

Technical Parameters

Model	BW-PP-J
Power Supply (V)	1P 220/3P 380V, 0.78kw(3.5A/1.5A)
Weight (kg)	340
Air Consumption (L/h)	12.5
Steam consumption (kg/h)	10
Air Pressure(Mpa)	0.5
Vapor pressure (Mpa)	0.6
Air connection	3/8
Steam connection	1/2,1/2
Dimension(LWH)(mm)	1895x1005x1550

Product Brochure

multifunction

It's easy to use

Intelligent systems

Efficient and convenient
