Model	GLQX30	GLQX50	GLQX100
Maximum rated capacity (kg)	30	50	100
Diameter (mm)	ф800	ф980	ф1200
Diameter Depth(mm)	600	675	900
Volume(L)	301	508	1017

Model

GLQX30

GLQX50

GLQX100

Maximum rated capacity (kg)

100

Diameter (mm)

ф800

ф980

ф1200

Diameter Depth(mm)

600

675

900

Volume(L)

301

508

1017

Rotation speed of cage (r/min)	The speed of washing, evenly dispensing, intermediate and high removal is set by the inverter as required
Power Supply (V/Hz)	380V/220V/50Hz	380V/220V/50Hz	380V/380V/50Hz
Main motor power(KW)	4	5.5	7.5

Rotation speed of cage (r/min)

The speed of washing, evenly dispensing, intermediate and high removal is set by the inverter as required

Power Supply (V/Hz)

380V/220V/50Hz

380V/380V/50Hz

Main motor power(KW)

5.5

7.5

controller	Color touch screen system	Touch screen system
Inverter power(KW)	5.5	7.5	11
External pipe interface cold and hot water	11/2	40	2
External Pipe Interface Steam	6	25	1
Outer pipe interface drainage	3	89	3
Compressed air pressure (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6
Water consumption per vehicle (approx.) (kg)	1000	500	1000
Electricity consumption per vehicle (approx.) (kWh)	1.5	12	/
Dimensions(WDH)(mm)	144013801800	160016001900	186018602150
Weight(kg)	1500	2000	3250

controller

Color touch screen system

Touch screen system

Inverter power(KW)

5.5

7.5

External pipe interface cold and hot water

11/2

External Pipe Interface Steam

Outer pipe interface drainage

Compressed air pressure (Mpa)

0.4-0.6

Water consumption per vehicle (approx.) (kg)

1000

500

1000

Electricity consumption per vehicle (approx.) (kWh)

1.5

Dimensions(W*D*H)(mm)

1440*1380*1800

1600*1600*1900

1860*1860*2150

Weight(kg)

1500

2000

3250

BCT Hard mount washer advantages

STPP (SP) series washing machine

MH series wet cleaning machine

BST Stacked washer-extractor/tumble dryers advantages

STPP series is dried and washed

STS series is dried and washed

Suspension industrial washer

Fully automatic inclined discharge washer

Hygienic isolated washing machine

STPP (DP) series

BT tumble dryer

BTT stacked tumble dryer

DE dryer

BST Stacked washer-extractor/tumble dryers advantages

STPP series is dried and washed

Suspension distillation type multi-solvent dry cleaning machine

Filter-type multi-solvent dry cleaning machine

Four series of fully enclosed perchloroethylene dry cleaning machine

DS-100 Multi-solvent Distillation Machine

Manual (bagging ) packaging machine

Semi-automatic (bagging ) packaging machine

Steel belt type X-type interactive conveyor line

Steel belt type Z-type interactive conveyor line

Suction blast bridge ironing table

YTT Ordinary Suction Ironing Table (Pedal Type)

22D-1 shoe washing machine

Shoe quick-drying machine (cylindrical 50 pairs)

Ironing machine for tops and trousers

Washing universal boiler press(B-A1-YTJ)

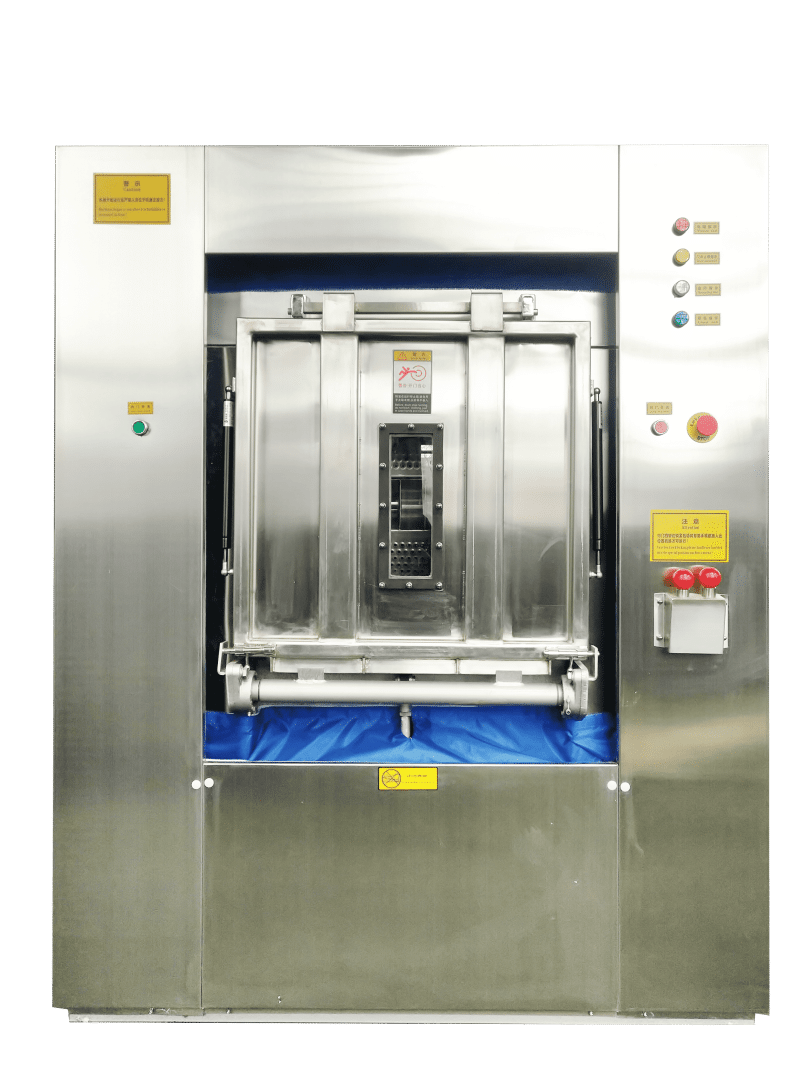

Hygienic isolated washing machine

(30/50/100 kg)

Product Overview

Application Industry

Technical features

Computer controllers

The large-screen wave crystal touch screen computer adopts Chinese (English) operation interface, and the man-machine dialogue mode is convenient and reliable.

Interior door locks

The inner door lock adopts a slider locking mechanism and has a self-locking and anti-loosening function, which has high strength and can ensure sitting.

Automatic door alignment device

The door is automatically controlled by a proximity switch to ensure that the inner door can be positioned when loading and picking up clothes.

Technical Parameters

High cleanliness

Low breakage rate

Energy-efficient and efficient

Good stability
